*Wir geben unser Bestes, aber die Ausstattung kann sich seitens des Herstellers jederzeit unangekündigt ändern.
**Spezifikationsliste gilt, Produktfotos können abweichen.

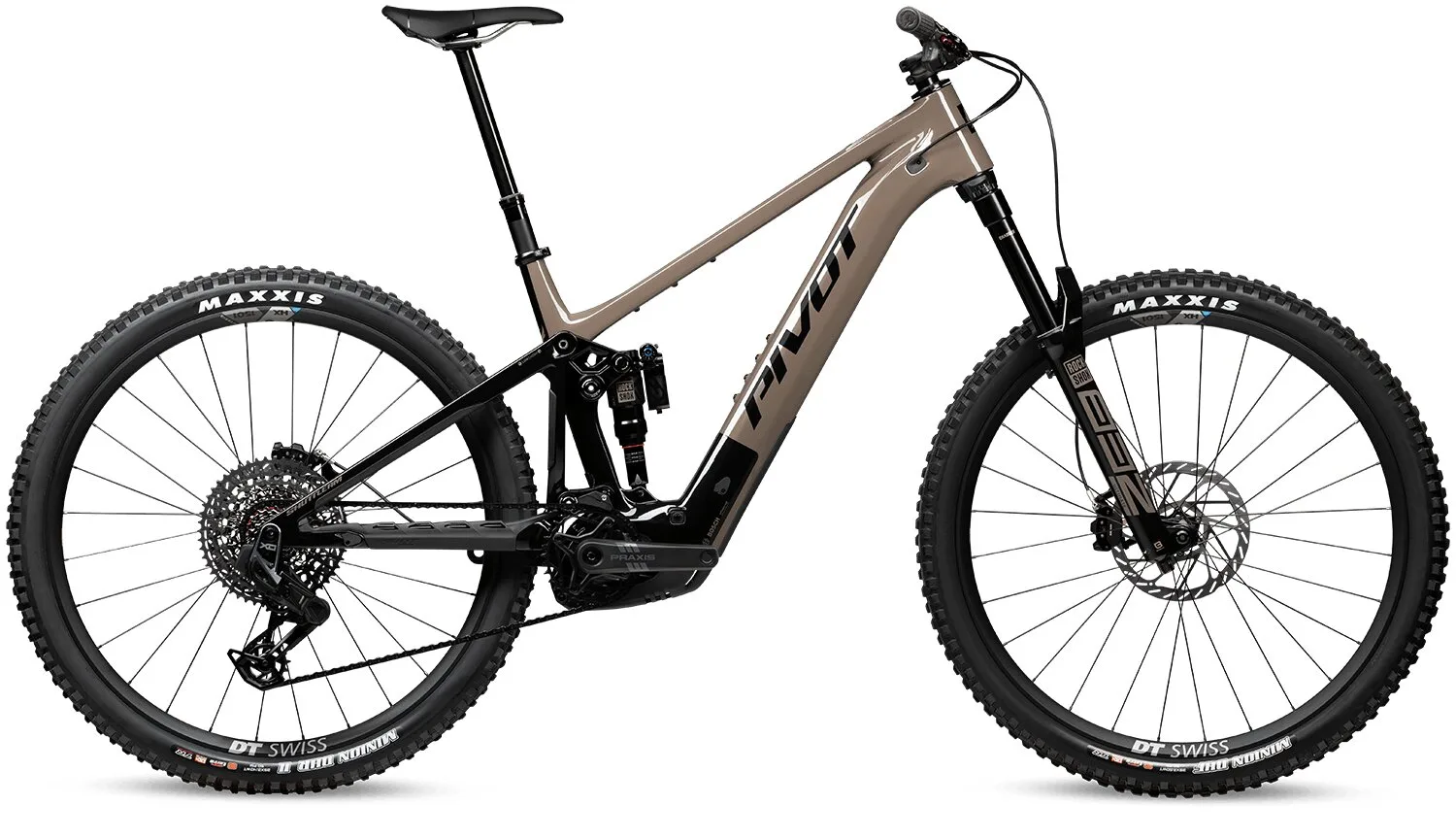

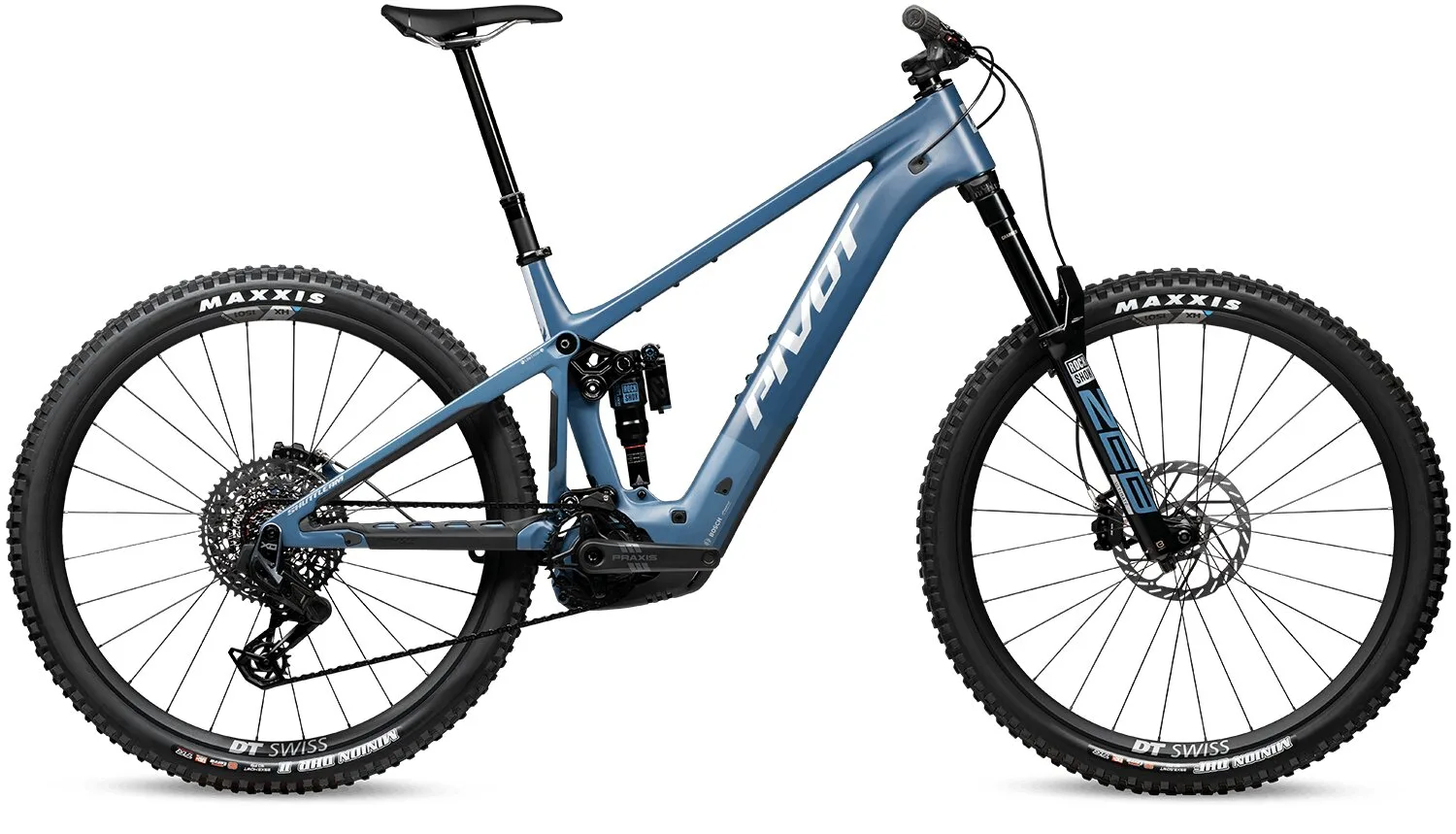

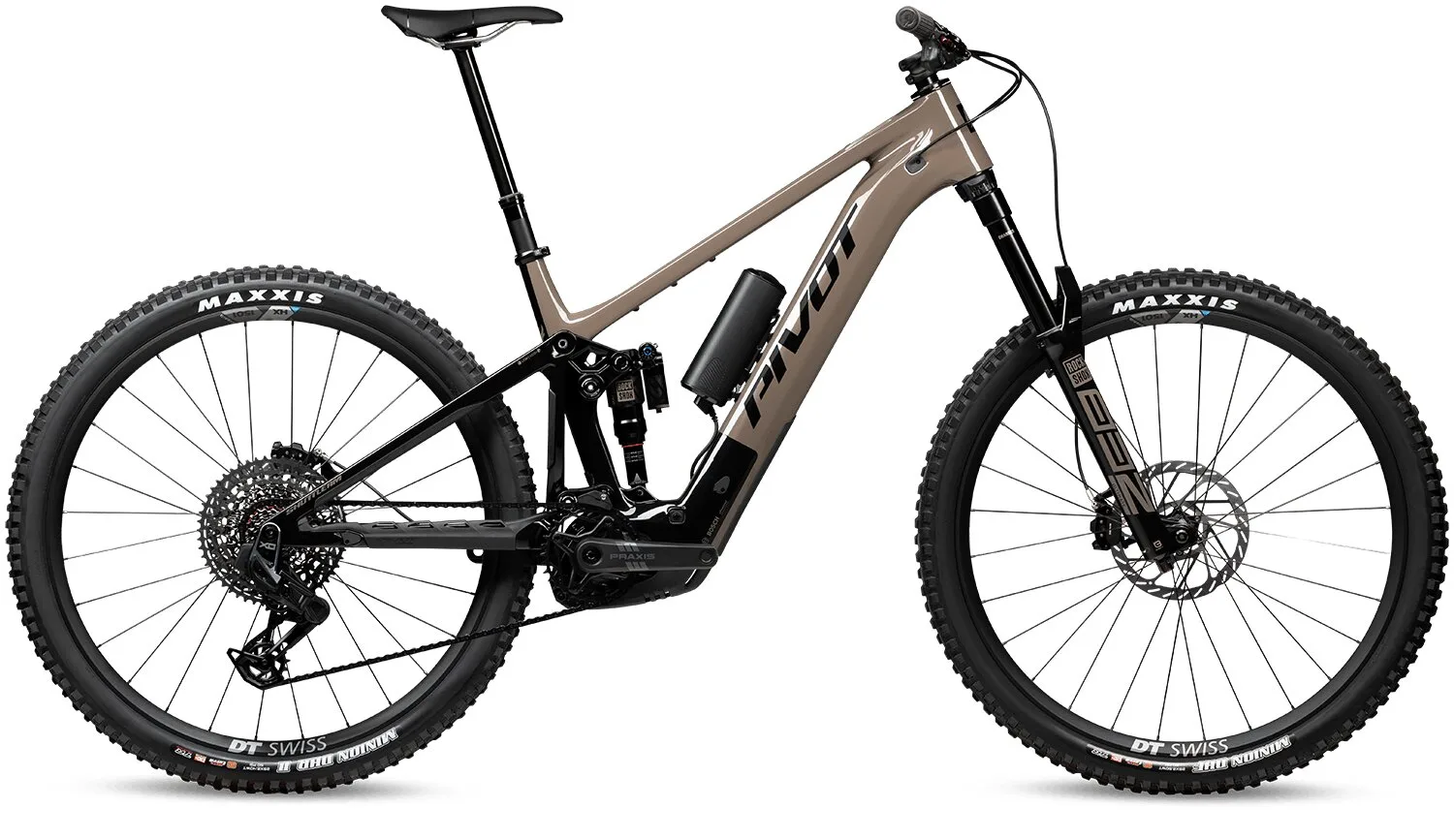

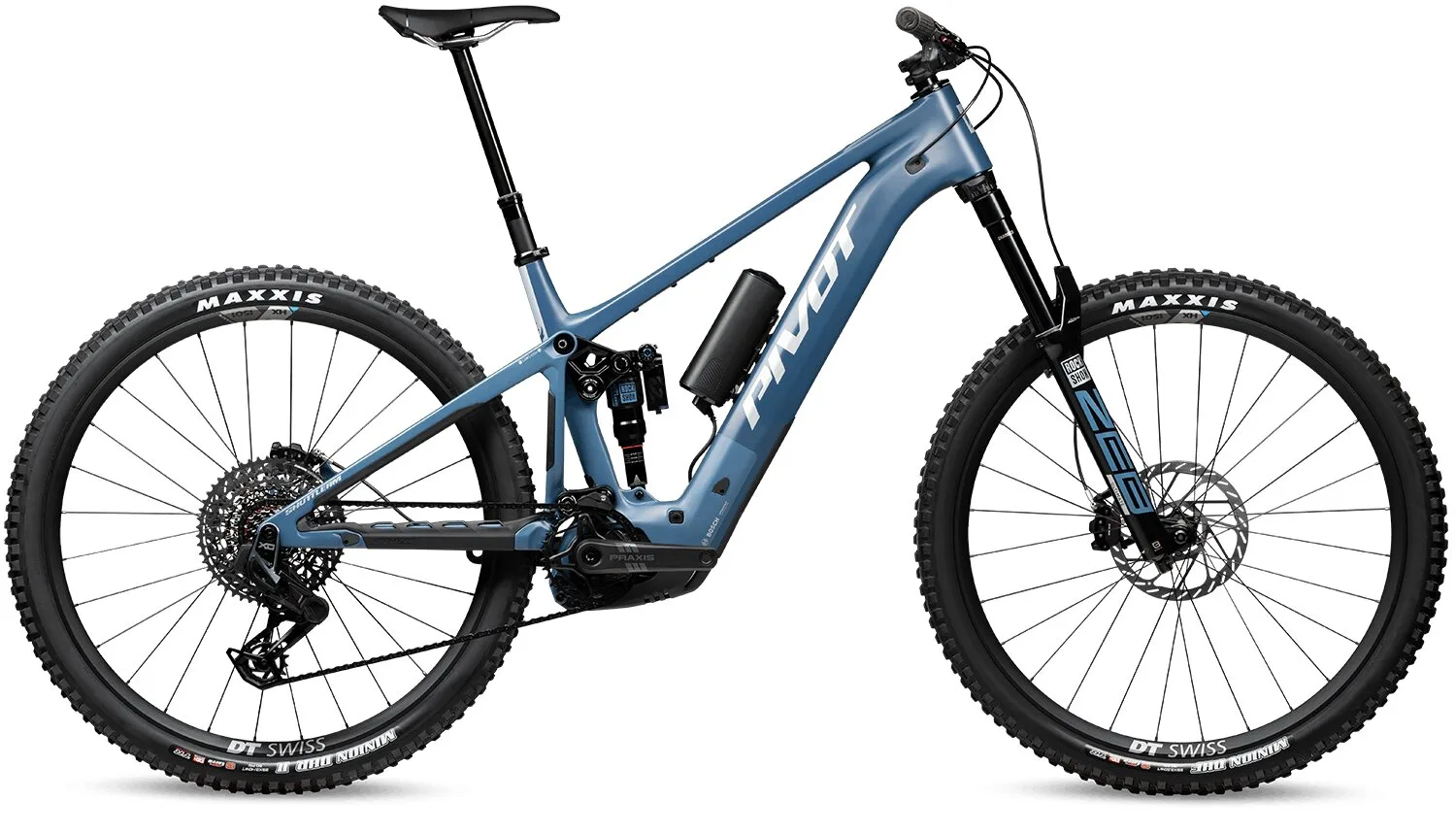

| Shuttle AM – PRO X0 Eagle Transmission |
||
| FORK | RockShox Zeb Ultimate 29″, 44mm offset, 160mm | |
| REAR SHOCK | RockShox Super Deluxe Ultimate | |
| REAR DERAILLEUR | Sram X0 Eagle Transmission 12-Speed | |
| CASSETTE | Sram GX 1275 Eagle Transmission 10-52t | |
| SHIFTER | Sram AXS Pod Controller | |
| BRAKES | Sram Maven Silver 4-piston | |
| CRANKSET | Praxis Alloy eCranks E-MTB 34t – 160mm | |
| HANDLEBAR | Phoenix Race Low Rise Carbon | |
| GRIPS | Phoenix Factory Lock-On | |
| STEM | Phoenix Team Enduro/Trail | |
| HEADSET | Pivot Precision Sealed Cartridge | |
| SEATPOST | OneUp Dropper V3 150mm (SM), 180mm (MD), 210mm (LG-XL) |
|
| SADDLE | Pivot Pro E-Bike | |
| ROTOR | F/R Sram HS2 Centerlock – 200mm | |
| CHAIN | Sram X0 Eagle Flattop 12-Speed | |
| MOTOR | Bosch Gen 5 Performance Line CX Race Edition 800Wh | |
| WHEELS | DT Swiss HX1501 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm 29″ 15×110 F/12×157 R |
|
| TIRES | F/ Maxxis Minion DHF 29″ x 2.5″ WT, TR, 3C, EXO+, MAXXTERRA R/ Maxxis Minion DHRII 29″ x 2.4″ WT, TR, 3C, EXO+, MAXXTERRA |
|
| Shuttle AM Größentabelle | ||||
| Fahrergröße | 160cm – 175cm | 173cm – 180cm | 178cm – 188cm | 188cm – 201cm |
| Fahrradgröße | SM | MD | LG | XL |
