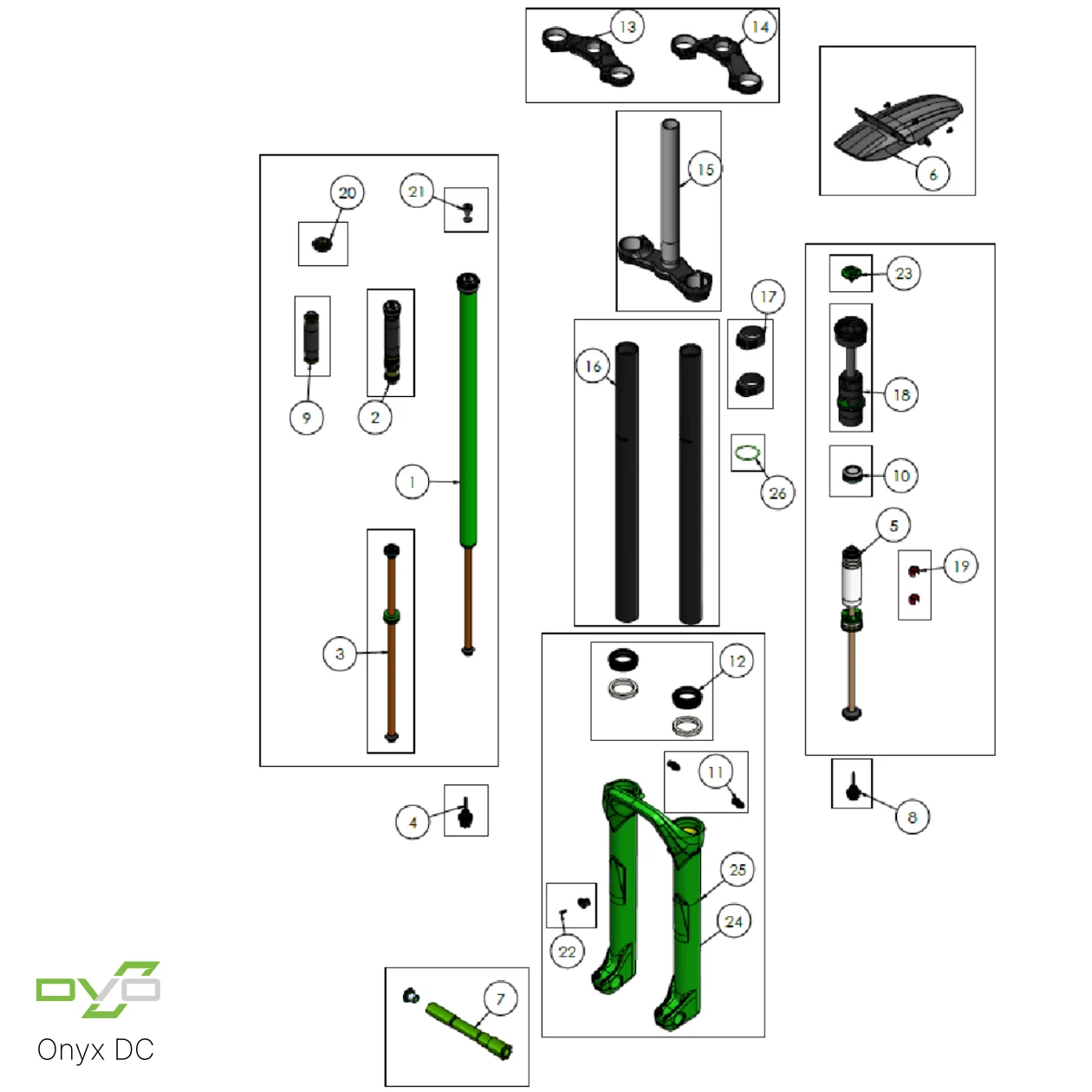

DVO Onyx DC Ersatzteil-Liste
Die verlinkten Teilenummern führen direkt zum jeweiligen Teil.
| Teil | Teilenr. | |
| 1 | Damper Complete – Onyx DC | 1659001 |
| 2 | Comp Assembly – Onyx DC | 1659003 |
| 3 | Rebound Assembly – Onyx DC | 1659002 |
| 4 | Rebound Foot Nut Assembly | 1439005 |
| 5 | Air Shaft Assembly 27.5″ | 1659007 |
| 6 | Fender Kit Onyx DC | 1659009 |
| 7 | Axle 110×20 Boost | 1659011 |
| 8 | Air Spring Foot Nut Assembly | 1439012 |
| 9 | Bladder Kit – Onyx | 1669006 |
| 10 | Air Piston Kit – Onyx DC | 1659016 |
| 11 | Air Bleeders Onyx SC/DC & Diamond 36 | 1659013 |
| 12 | Seal Kit 36mm | 1669010 |
| 13 | Upper Crown 5mm Drop – Onyx DC | 1659006 |
| 14 | Upper Crown 22mm Drop – Onyx DC | 1659015 |
| 15 | Lower Crown + 1 1/8 steer – Onyx DC | 1659004 |
| 16 | Stanchion Tube – Onyx DC | 1651002 |
| 17 | Frame Bumpers – Onyx DC | 1651012 |
| 18 | Air Volume Assembly – Onyx DC | 1659008 |
| 19 | OTT Travel Reduction Kit | 1439017 |
| 20 | Damper Knob & Detent Kit – Onyx DC | 1659018 |
| 21 | Bleed Screw & O-Ring | 1439019 |
| 22 | Cable Guide & Screw | 1439020 |
| 23 | Air Cap 2022 – Green | 213-9021 |
| 24 | Bottom Case Assembly 275 – Green 2019 – Onyx DC | 1659000-TC704-x3 |
| 24 | Bottom Case Assembly 275 – Black 2019 – Onyx DC | 1659000-YS727-X3 |
| 24 | Bottom Case Assembly 275 – Blue 2019 – Onyx DC | 1659000-YS9429 |
| 25 | Bottom Case Assembly 29 – Green 2019 – Onyx DC | 195-9000-TC704 |
| 25 | Bottom Case Assembly 29 – Black 2019 – Onyx DC | 195-9000-YS727 |
| 26 | Travel O-Ring Indicator – 36mm | 1661093 |
