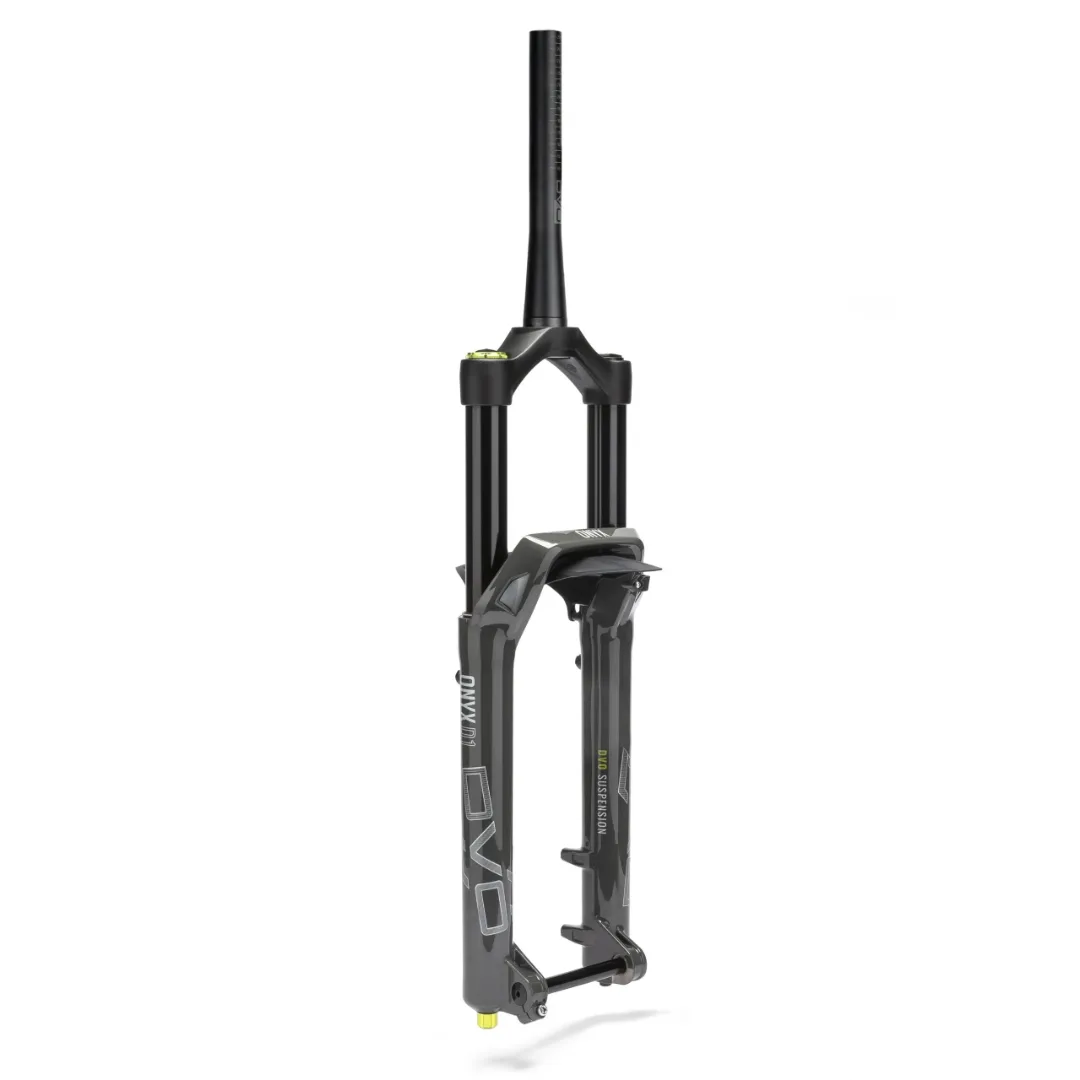

*Produktfotos können abweichen.

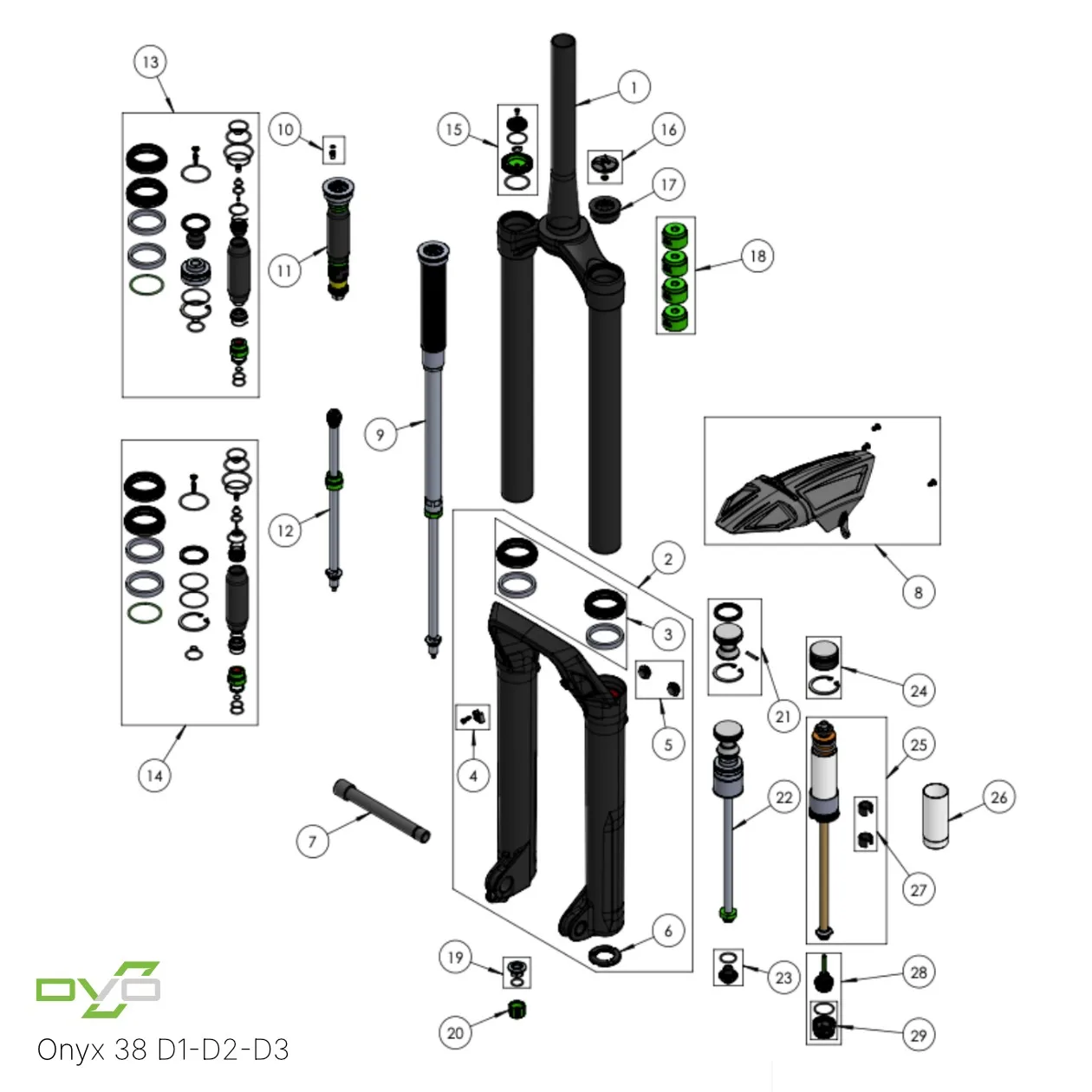

DVO Onyx 38 Ersatzteil-Liste
Die verlinkten Teilenummern führen direkt zum jeweiligen Teil.
| Teil | Teilenr. | |
| 1 | Upper Assembly Black – Onyx 38 Large Crown | 243-9001-SP |
| 2 | Bottom Case Assembly – D1 Black – Onyx 38 | 241-SP07-YS728 |
| 2 | Bottom Case Assembly – D1 Green – Onyx 38 | 241-SP07-TC704 |
| 2 | Bottom Case Assembly – D1 Grey – Onyx 38 | 241-SP07-PPU25-01 |
| 2 | Bottom Case Assembly – D2 Black – Onyx 38 | 243-SP03-YS728 |
| 2 | Bottom Case Assembly – D2 Green – Onyx 38 | 243-SP03-TC704 |
| 2 | Bottom Case Assembly – D2 Grey – Onyx 38 | 243-SP03-PPU25-01 |
| 2 | Bottom Case Assembly – D3 Black – Onyx 38 | 244-SP07-YS728 |
| 2 | Bottom Case Assembly – D3 Green – Onyx 38 | 244-SP07-TC704 |
| 2 | Bottom Case Assembly – D3 Grey – Onyx 38 | 244-SP07-PPU25-01 |
| 2 | Bottom Case Assembly – Onyx 38 WP | 259-WP01 |
| 3 | Seal Kit – Onyx 38 | 241-SP01 |
| 4 | Cable Guide Kit – Onyx 38 | 241-1087-SP |
| 5 | Bleeder Plug Assembly – Onyx 38 | 241-9013-SP |
| 5 | Bleeder Plug Assembly – Onyx 38 WP | 241-9013-10-WP |
| 6 | Bottom Out Bumper – Onyx 38 | 241-1081-SP |
| 7 | Stepped Axle – Onyx 38 | 241-1003-SP |
| 8 | Fender Kit – Onyx 38 | 241-9007-SP |
| 9 | D1 Damper Cartridge – Onyx 38 | 241-9004-SP |
| 9 | D2 Damper Cartridge – Onyx 38 | 243-9004-SP |
| 9 | D3 Damper Cartridge – Onyx 38 | 244-SP01 |
| 9 | Damper Cartridge – Onyx 38 WP | 259-9004-WP |
| 10 | Damper Plug Kit | 1569015 |
| 11 | D1 Compression Assembly – Onyx 38 | 272-9002-SP |
| 11 | Compression Assembly – Onyx 38 WP | 259-9003-WP |
| 12 | Rebound Assembly – Onyx 38 WP | 241-9003-WP |
| 12 | Rebound Assembly – Onyx 38 | 241-9003-SP |
| 13 | D1 SL Complete Service Kit – Onyx 38 | 241-SP02 |
| 13 | D2 SL Complete Service Kit – Onyx 38 | 243-SP01 |
| 13 | D3 SL Complete Service Kit – Onyx 38 | 244-SP04 |
| 13 | SL Complete Service Kit – Onyx 38 WP | 259-WP03 |
| 14 | D1 OTT Complete Service Kit – Onyx 38 | 242-SP02 |
| 14 | D2 OTT Complete Service Kit – Onyx 38 | 243-SP02 |
| 14 | OTT Complete Service Kit – Onyx 38 WP | 259-WP04 |
| 15 | D1 Damper Compression Knobs Kit- Onyx 38 / Diamond 36 D1 SL | 241-9008-SP |
| 15 | D2 Damper Compression Knobs Kit- Onyx 38 | 243-9008-SP |
| 15 | D3 Compression Knob | 244-SP02 |
| 15 | Damper Compression Knobs Kit- Onyx 38 WP | 259-9012-WP |
| 16 | Air Cap Kit – Onyx 38 D1-D2 / Diamond 36 D1 SL | 241-SP06 |
| 16 | Air Cap Kit – Jade X, Topaz, Onyx 38 D3 | 205-9021 |
| 16 | Air Cap Kit – Onyx 38 WP | 259-WP02 |
| 17 | Air Top Cap Assembly – Onyx 38 D1-D2 | 241-SP05 |
| 17 | Air Top Cap Assembly – Onyx 38 D3 | 244-SP03 |
| 18 | Air Volume Reducer Kit (4) 10cc each | 241-SP09 |
| 19 | Rebound Foot Nut – Onyx 38 / Diamond 36 D1 SL | 241-SP03 |
| 20 | Rebound Knob – Onyx 38 / Diamond 36 D1 SL | 241-1037-SP |
| 20 | Rebound Knob – Onyx 38 WP | 241-1037-10-WP |
| 21 | SL Air Piston Kit – Onyx 38 | 241-SP08 |
| 22 | SL Air Shaft Assembly – 160mm – Onyx 38 | 241-9010-160-SP |
| 22 | SL Air Shaft Assembly – 170mm – Onyx 38 | 241-9010-170-SP |
| 22 | SL Air Shaft Assembly – 180mm – Onyx 38 | 241-9010-180-SP |
| 23 | SL Foot Nut – Onyx 38 / Diamond 36 | 241-SP04 |
| 24 | OTT Air Piston Kit – Onyx 38 | 242-9008-SP |
| 25 | OTT Air Shaft Assembly 160-180mm – Onyx 38 | 242-9007-SP |
| 25 | OTT Air Shaft Assembly – Onyx 38 WP | 261-9007-WP |
| 26 | OTT Spring Guide Kit – Onyx | 1669020 |
| 27 | OTT Travel Reduction Kit | 1439017 |
| 27 | Travel Reduction – Onyx 38 WP | 1431067-SP |
| 28 | OTT Foot Nut and OTT Cap – Onyx 38 | 242-SP03 |
| 28 | OTT Foot Nut and OTT Cap – Onyx 38 WP | 261-WP01 |
| 29 | OTT Cap Assembly | 242-SP01 |
