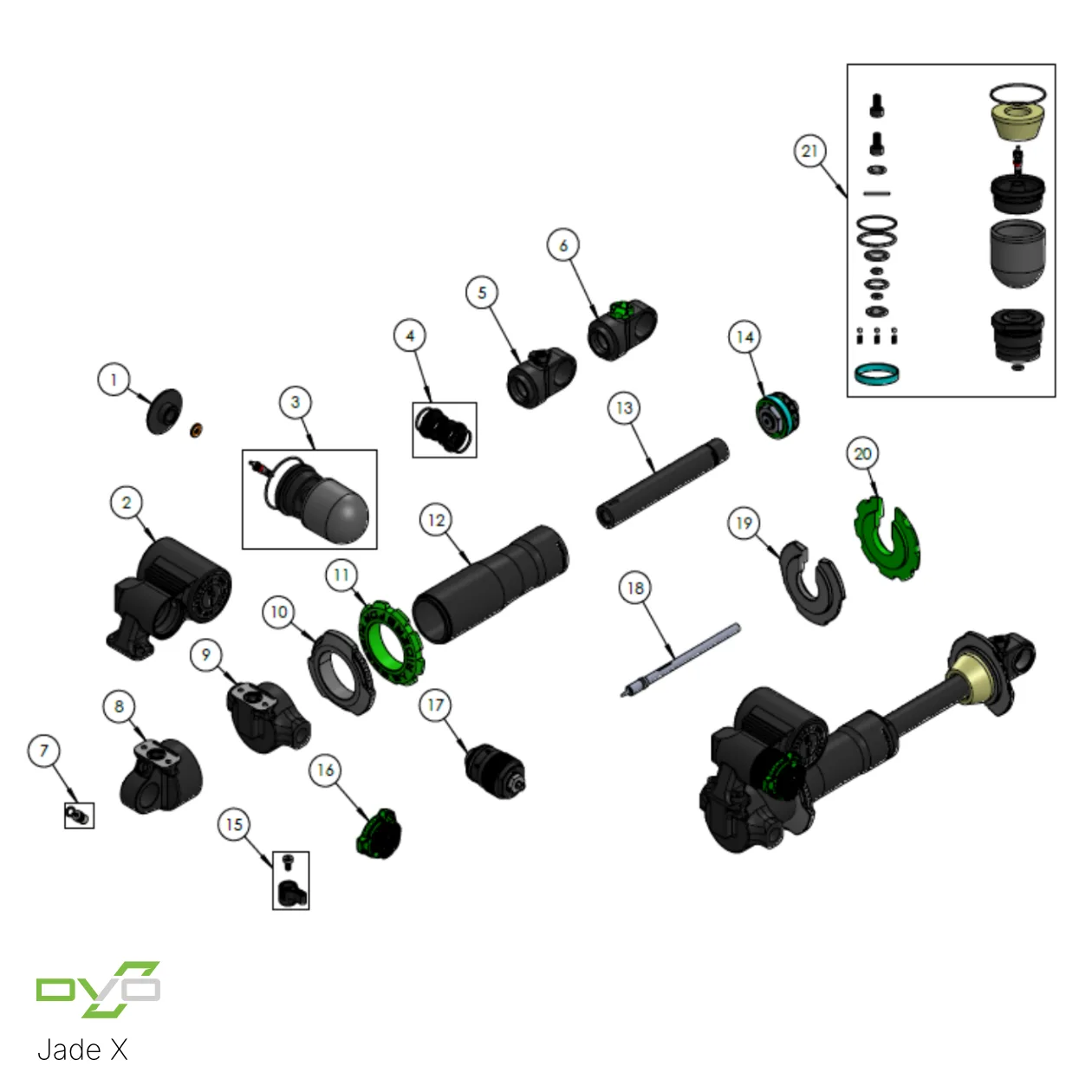

DVO Jade X Ersatzteil-Liste
Die verlinkten Teilenummern führen direkt zum jeweiligen Teil.
| Product Name | Part Nr. | |
| 1 | Air Cap Jade X / Topaz Gen3 / Onyx 38 D3 | 205-9021 |
| 2 | Reservior Body – Jade X Core | 209-1002-SP |
| 2 | Reservior Body – Jade X Prime | 233-1002-SP |
| 2 | Reservior Body – Jade X Pro | 191-1002-SP |
| 3 | Bladder Kit – Jade X/WP / Topaz | 1569012 |
| 4 | IGUS DU Bushings Kit | 1429020 |
| 5 | Shaft Eyelet – Jade X Prime | 233-SP01 |
| 6 | Shaft Eyelet – Jade X Pro / Core | 191-SP01 |
| 8 | Damper Plug Kit | 1569015 |
| 8 | Upper Housing Eyelet – Jade X | 191-1001-SP |
| 9 | Upper Housing Trunnion – Jade X | 191-1001T-SP |
| 10 | Preload Collar – Jade X Prime | 233-5001-SP |
| 11 | Preload Collar Jade / Jade X | 1421011 |
| 12 | Main Body 2.25 – Jade / Jade X | 1421009-225 |
| 12 | Main Body 2.75/2.5 – Jade / Jade X | 1421009-275/250 |
| 12 | Main Body 55 – Jade / Jade X | 1421009-55 |
| 12 | Main Body 65 – Jade / Jade X | 1421009-65 |
| 13 | 14mm Shaft 2.25 – Jade X | 191-1017-22 |
| 13 | 14mm Shaft 2.5 – Jade X | 191-1017-25 |
| 13 | 14mm Shaft Metric 55mm – Jade X | 191-1017-55 |
| 13 | 14mm Shaft Metric 65mm – Jade X | 191-1017-65 |
| 13 | 14mm Shaft Metric 75mm – Jade X | 191-1017-75 |
| 14 | Piston Bolt Group – Jade X | 1429004-33 |
| 15 | Compression Lever Kit Jade X / Topaz | 1839005 |
| 16 | Compression Knobs – Jade X / Topaz Prime | 205-SP01 |
| 17 | Compression Assembly – Jade X / Topaz Prime | 205-SP02 |
| 18 | HD Rebound Needle 2.25 – Jade X | 191-1024-22 |
| 18 | HD Rebound Needle 2.5 – Jade X | 191-1024-25 |
| 18 | HD Rebound Needle 55mm – Jade X | 191-1024-55 |
| 18 | HD Rebound Needle 65mm – Jade X | 191-1024-65 |
| 18 | HD Rebound Needle 75mm – Jade X | 191-1024-75 |
| 19 | Spring Clip Stroke Reducer – 0mm – Jade X Prime | 233-5002-0-SP |
| 19 | Spring Clip Stroke Reducer -2.5mm – Jade X Prime | 233-5002-2-SP |
| 19 | Spring Clip Stroke Reducer -5mm – Jade X Prime | 233-5002-5-SP |
| 19 | Spring Clip Stroke Reducer -7.5 – Jade X Prime | 233-5002-7-SP |
| 20 | Spring Clip 0mm Jade / Jade X | 1421013 |
| 20 | Spring Clip Stroke Reducer -2.5mm – Jade / Jade X | 191-1003-2-SP |
| 20 | Spring Clip Stroke Reducer -5mm – Jade / Jade X | 191-1003-5-SP |
| 20 | Spring Clip Stroke Reducer-7.5mm – Jade / Jade X | 191-1003-7-SP |
| 21 | Seal/Repair Kit – Jade X Prime / Pro / Core | 233-SP02 |
